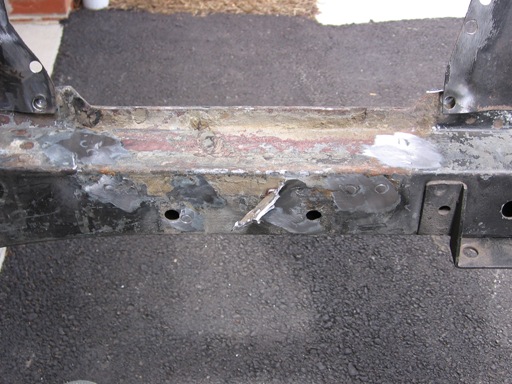

Here is what was left after the second pull on the old tower

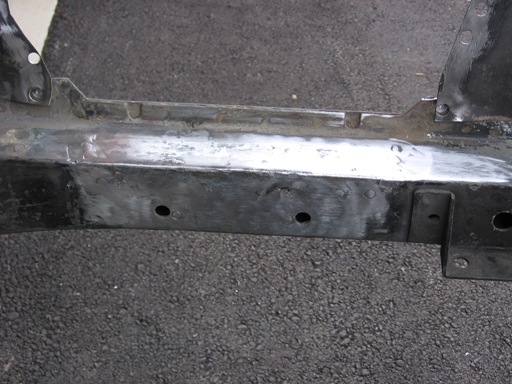

This is all ground away

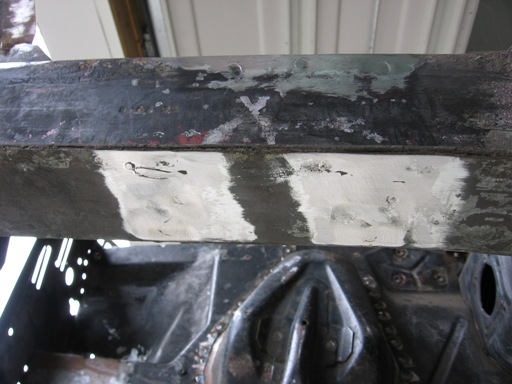

The underside of the frame rail

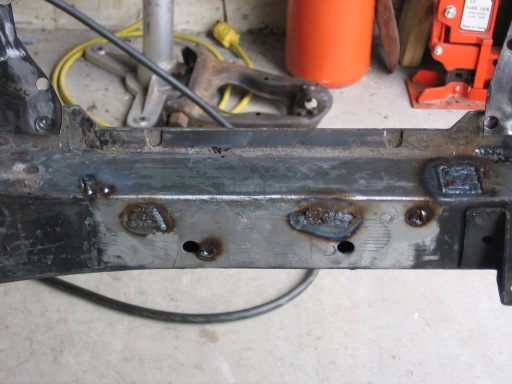

Part of the extraction process required the use of a air chisel. This put some valleys in the frame rail. To correct this, some stitch welds were put on the rails to fill in the gaps and provide a level surface for the new tower.
More welds on the bottom

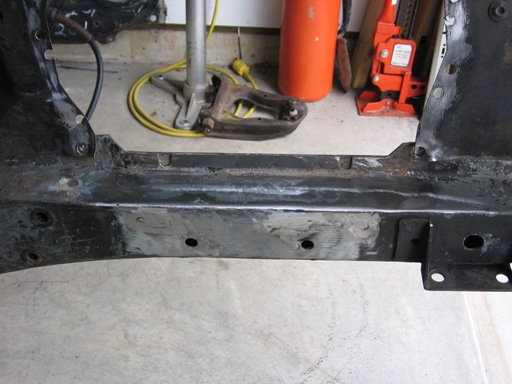

The top is then ground down to a smooth surface

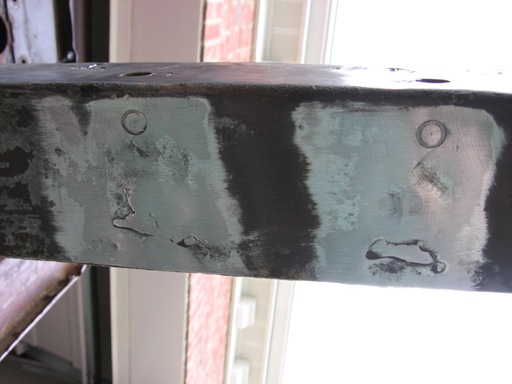

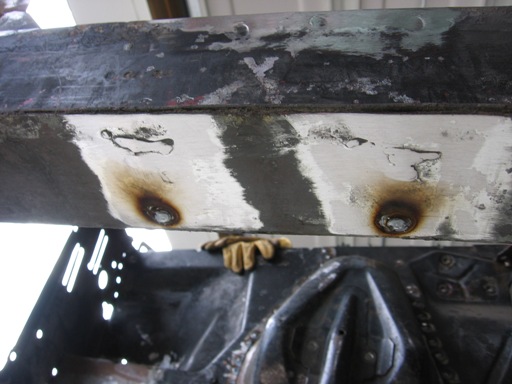

As is the bottom

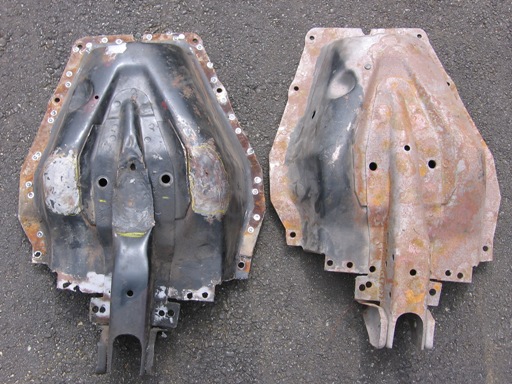

Here is the comparison of the original tower and the replacement tower

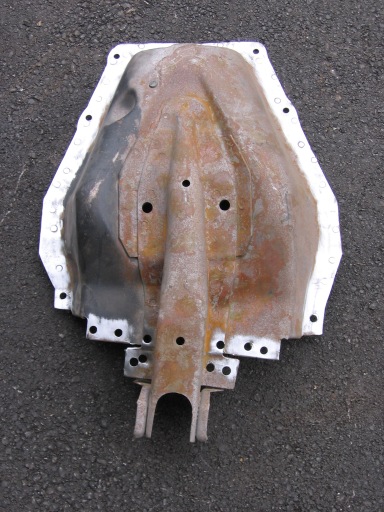

The welding surfaces of the replacement tower are cleared of rust to promote a clean weld

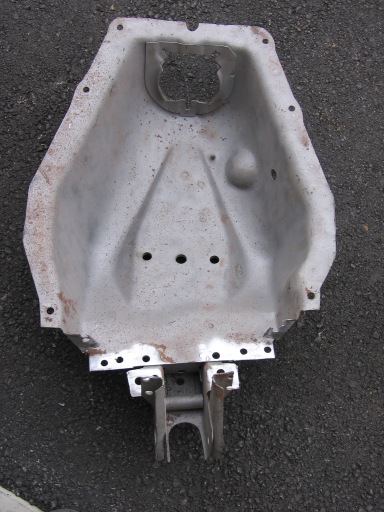

On the underside as well

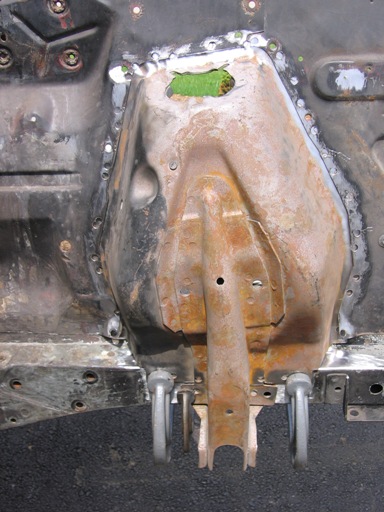

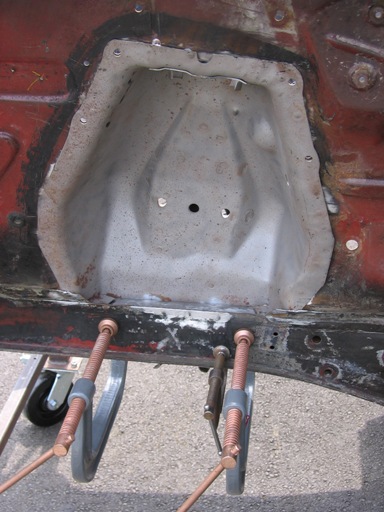

The replacement is fit into place and the welding process begins
Backside view

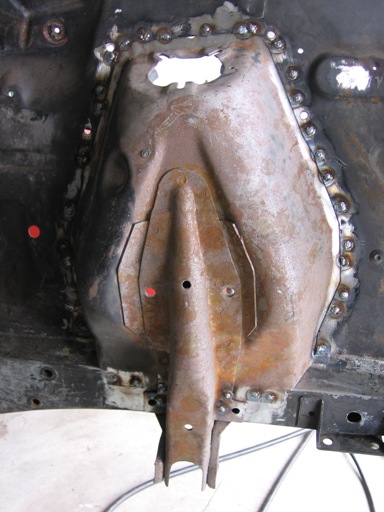

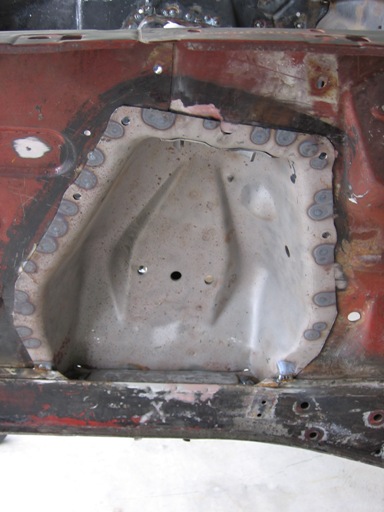

Welding on the front is complete
Here is the view from the wheel well. The welds will be ground down to match the factory installation
